Great Wall Motor’s 2026 Tank 300 SUV receives a comprehensive overhaul, evolving in design, intelligence, chassis, and powertrain to become an all-round “Ark” balancing daily driving and off-road capability.

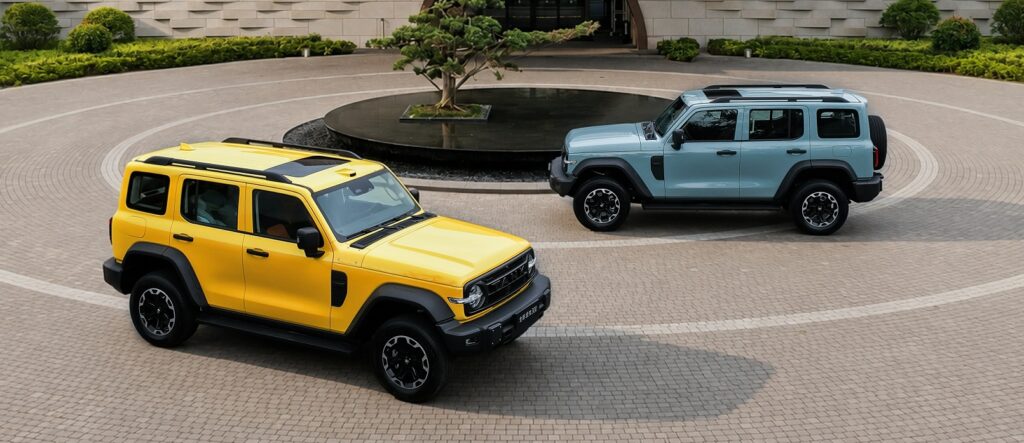

‌Exterior & Space‌: Six signature paint colors, 0.618 golden wheelbase-to-length ratio, and a long-neck body styling shared with luxury vehicles. The front grille features a blackened TANK mesh with refined round headlights, front overhang reduced to 774mm for improved approach, paired with traditional door handles and a rear-mounted spare tire. Dimensions grow to 4886/1984/1927mm with a 3010mm wheelbase for expanded interior space.

‌Interior & Ecosystem‌: Three interior themes, 12.3-inch digital cluster plus 15.6-inch 2.5K floating display, running Coffee OS 3 smart cockpit with Coffee GPT large model. Factory-supplied IoT accessories including handheld radio, fridge, spotlights, and tent create a one-stop outdoor ecosystem.

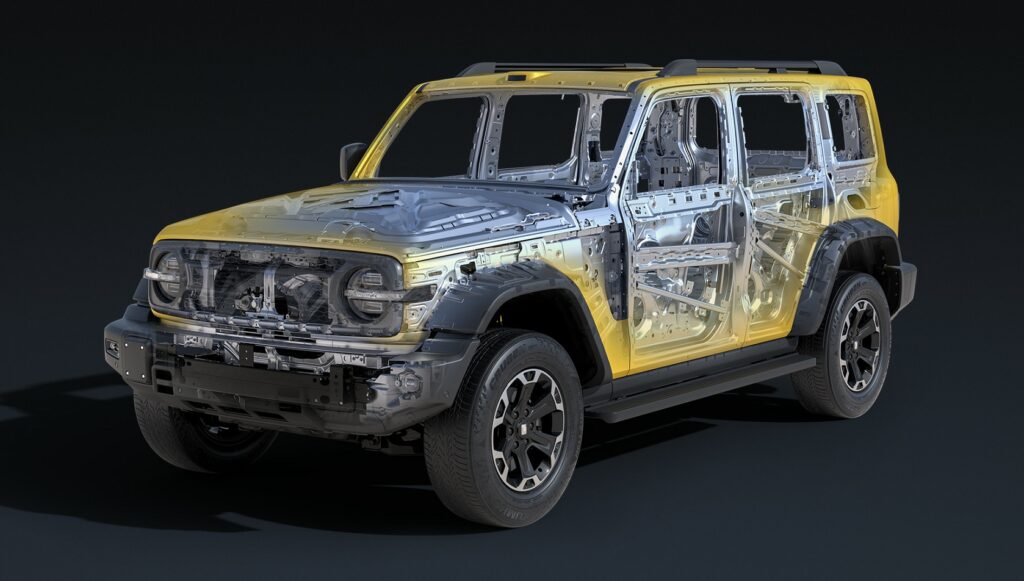

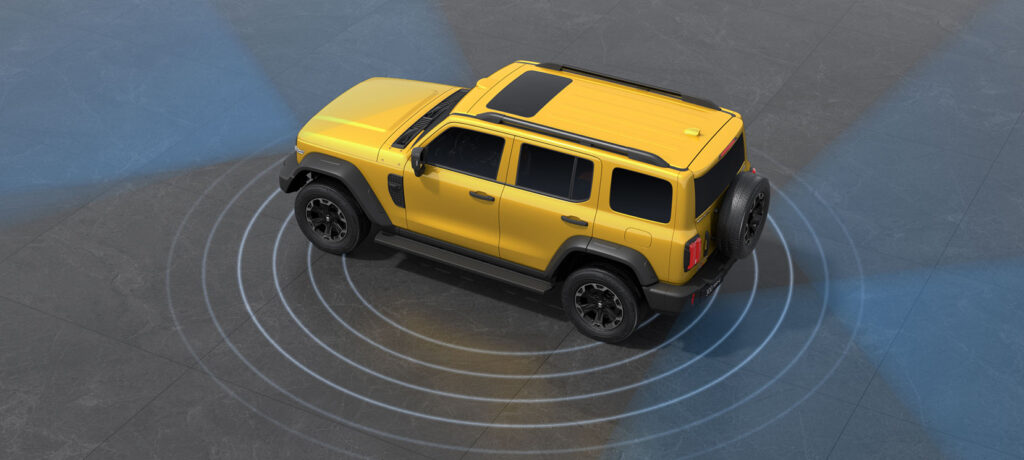

‌Chassis & Intelligent Driving‌: Eight rubber mounts between the ladder frame and body form an exclusive “five-layer vibration filtration” structure with mounts, absorbing impacts progressively. ADAS uses 27 sensors including one LiDAR, supporting full-scenario NOA and sentry mode, with optional Coffee Night Vision 2.0 far-infrared night vision.

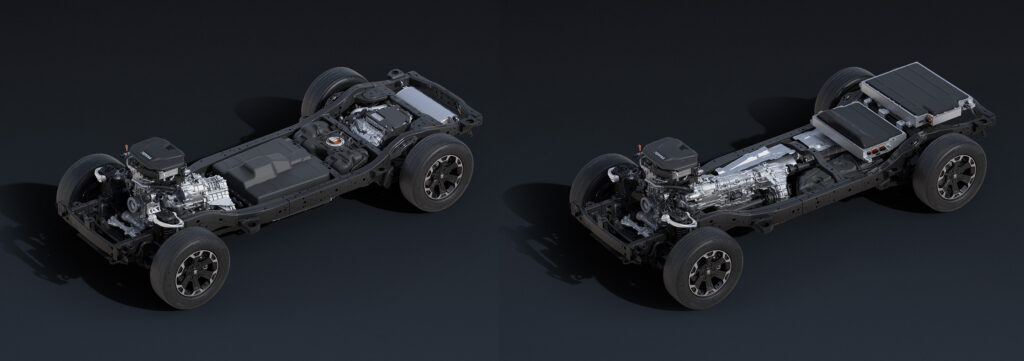

‌Powertrain Lineup‌: Four versions—2.0T, 3.0T V6 petrol, Hi4-T, and Hi4-Z PHEV. The new PHEV models both use 2.0T+motor: Hi4-T pairs a 130kW front motor with a 37.1kWh battery, electronic shift-on-the-fly 4WD, 105km pure EV range, 913km combined range, 0-100km/h in 6.1s; Hi4-T features dual motors with a 59.6kWh battery, electric 4WD, 200km pure EV range, 1122km combined range, 0-100km/h in 4.3s.

The 2026 Tank 300 redefines off-road accessibility through technology democratization, cementing its dominance as a premium hardcore SUV benchmark.

……………………………………………………Electrostatic Protection Knowledge……………………………………………………

Electrostatic discharge (ESD) and electrical surges are common transient high-voltage phenomena in automotive electrical systems. They are capable of damaging sensitive electronic components, triggering system failures, and even posing serious safety hazards. To address this, TVS (Transient Voltage Suppression) diodes and ESD (Electrostatic Discharge) protection components have been developed. As specially designed protection devices, their primary role is to safeguard automotive electronic equipment from such electrical shocks. TVS & ESD components, through their extremely fast response speed, clamp transient overvoltages to a safe level and divert the surge current to ground, thereby providing effective protection for downstream circuitry.

Within the automotive electronic architecture, TVS & ESD components are crucial for ensuring the stable operation of internal precision systems. As modern vehicles integrate a large number of control units and sensors that are highly sensitive to electrical interference, these components must be deployed at multiple critical nodes to build a comprehensive protection network. The protected systems cover all areas, from the powertrain to in-vehicle infotainment.

Specifically, TVS & ESD components in automobiles serve the following primary protective functions:

1. Communication Bus Protection: Communication buses such as CAN, LIN, Automotive Ethernet, and RS232/485, which act as the vehicle’s “neural network,” are highly susceptible to interference from ESD and surges. TVS & ESD components ensure the integrity and stability of data transmission, preventing communication errors or interruptions.
2. Core Safety System Protection: Core safety systems that are directly related to driving safety—such as the powertrain, Battery Management System (BMS), braking system, and radar—must rely on TVS & ESD components for protection to prevent critical functional failures caused by electrical interference.
3. Interface and Peripheral Protection: External connection points like charging ports, keyless entry receivers, side-view cameras, and other cameras are primary pathways for ESD intrusion. TVS & ESD components can effectively block these paths, preventing damage to internal circuitry during connection events.
4. Lighting and Display System Protection: In-vehicle display navigation and lighting systems also require protection to avoid damage such as burnt-out LEDs, display malfunctions, or permanent failure caused by transient high voltages.

In summary, TVS & ESD components play an indispensable role in ensuring the reliability of automotive electronic systems, reducing the total cost of ownership, and safeguarding the safety of drivers and passengers. As the level of automotive electronics and intelligence continues to increase, the proper deployment of these protection components has become a key element in enhancing overall vehicle quality and building user trust.

……………………………………………………………………Company Profile……………………………………………………………………

JY Electronics serves a global customer base across the automotive, industrial & power, computing, consumer, and mobile & wearables industries. Our extensive product portfolio includes Schottky diodes, TVS and ESD protection devices, MOSFETs, LDOs, power ICs, battery protection & segment driver ICs, industrial & automotive-grade sensors, high-side switches (HSD), current sensors, and automotive switch input chips. We are committed to continuous innovation, delivering high-quality products that empower our customers to develop energy-efficient and sustainable solutions.

For samples or a quotation, please contact us at market@jy-electronics.com.cn.
