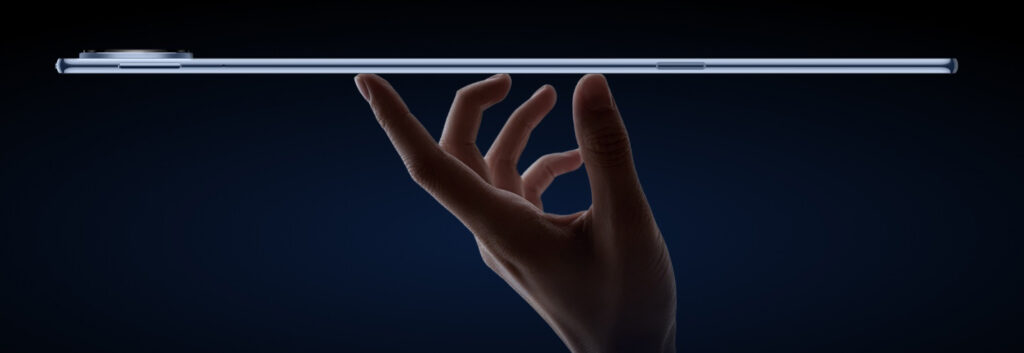

The HUAWEI MatePad Pro Max features an ultra-slim design, making it the world’s thinnest and lightest large-size tablet at approximately 4.7mm thick and 499g, marking a new breakthrough in slim craftsmanship for large tablets.

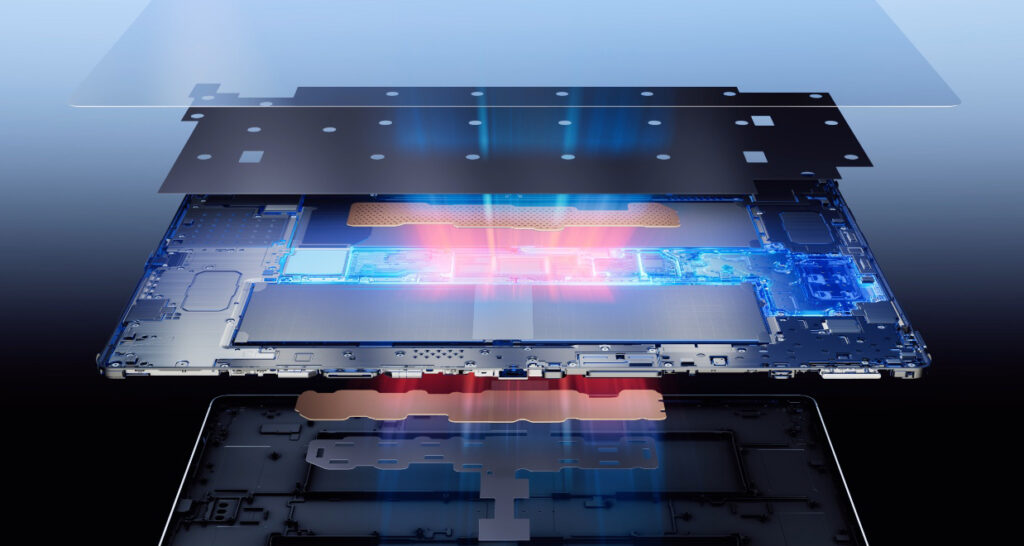

The all-new tablet Falcon architecture enables extreme component stacking through innovative micro-devices. Compared to the HUAWEI MatePad Pro 13.2-inch 2025, board stacking density increased by 15%, stack thickness reduced by 22%, and the load-bearing beam structure improves bend resistance by 60%—making it the industry’s first tablet to pass TÜV Rheinland’s Slim & Bend Certification.

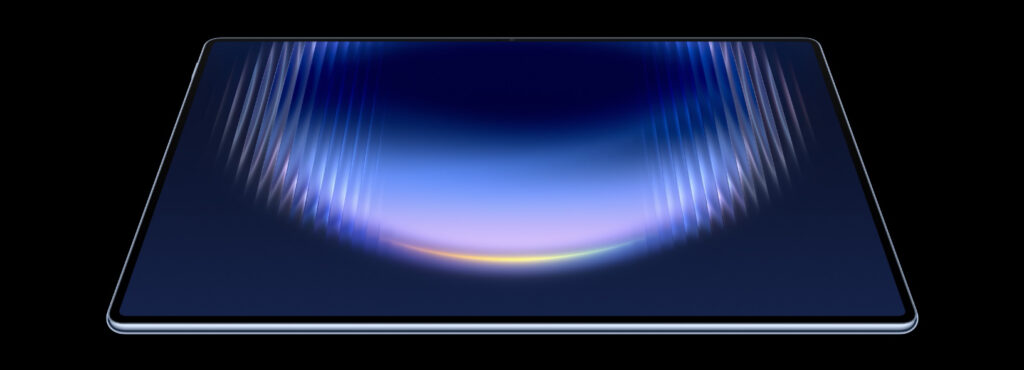

The notch has been “cut off” on this large-screen flagship. It features a 13.2-inch notch-free OLED Ultra Clarity Matte FullView display with 94% screen-to-body ratio, 3000×2000 resolution, 144Hz refresh rate, 1600 nits peak brightness, and 3.55mm uniform ultra-narrow bezels on all four sides. The front camera is hidden within the bezel, delivering a truly hole-less full-screen experience. The matte version is certified by TÜV Rheinland Global Eye Comfort 5.0.
For the first time on a tablet, it features the second-generation Red Maple True-Color Camera with 120% improved color accuracy, paired with a 50MP HD main camera supporting full-pixel autofocus and 2X optical-quality zoom, significantly enhancing creative and video call experiences.
The six-speaker system is co-tuned with the Central Conservatory of Music’s AI music system, using an ultra-thin quad-drive bass module that boosts low-frequency response by 167% and loudness by 67%. It also features an innovative 3D microphone array delivering professional-grade audio capture.
Powered by up to the Kirin T93 Pro flagship chip (Joy Edition uses Kirin T93), with software-hardware-chip-cloud synergy, overall performance is 45% higher than the 13.2-inch 2025 model. Powered by the Ark Engine, the desktop mode supports up to 20 simultaneous windows, with PC-level apps launching in 1 second and large files opening in 1 second. Popular large games are deeply optimized for smooth high-frame, high-definition gameplay.
The “HarmonyOS Dual Desktop” offers a tablet desktop for touch and stylus interaction, and a PC desktop for multi-window stacking, mouse/keyboard input, and desktop-level file management—supporting over 200 desktop-class applications.
It houses a 10400mAh battery with 66W fast charging (up to 120W wired) and 40W reverse charging. StarFlash-compatible, it works with the M-Pencil Pro and Glide Keyboard for professional creation and light productivity.
……………………………………………………Electrostatic Protection Knowledge……………………………………………………
As highly integrated portable devices, tablets require ESD protection components (ESD/TVS) to ensure reliability and user experience. Key interfaces requiring protection include:
1.Data & Charging: USB Type-C/USB 3.x/4 and Thunderbolt require ultra-low capacitance (<0.5pF) devices to maintain signal integrity; Micro-USB requires low clamping voltage for power and data lines.
2.Expansion: MicroSD and SIM slots need protection against human contact during hot-swapping.
3.User Interaction: 3.5mm jacks need ultra-low leakage current to preserve audio quality; physical buttons require TVS diodes to withstand ESD shocks.
4.Wireless/RF: Wi-Fi/GPS and NFC antennas require ultra-low capacitance protection to prevent signal interference.
5.Internal Signals: Camera (MIPI CSI), Display (MIPI DSI), and Touch (I²C) interfaces need ultra-low capacitance arrays to prevent signal distortion.
6.Power: Battery (BMS) and DC-IN ports require high surge current handling to protect against power surges.
7.Sensors & Aux: Sensors and HDMI outputs require protection to prevent component damage.
……………………………………………………………………Company Profile……………………………………………………………………
JY Electronics serves a global customer base across the automotive, industrial & power, computing, consumer, and mobile & wearables industries. Our extensive product portfolio includes Schottky diodes, TVS and ESD protection devices, MOSFETs, LDOs, power ICs, battery protection & segment driver ICs, industrial & automotive-grade sensors, high-side switches (HSD), current sensors, and automotive switch input chips. We are committed to continuous innovation, delivering high-quality products that empower our customers to develop energy-efficient and sustainable solutions.
For samples or a quotation, please contact us at market@jy-electronics.com.cn.
