RF Schottky diodes are purpose-built for radio-frequency circuits, offering superior switching speed, minimal junction capacitance, low forward voltage drop, and near-instantaneous reverse recovery time. These characteristics make them the device of choice for RF detection, frequency mixing, and other high-frequency signal processing applications. Leveraging years of RF device development expertise, JY Electronics has introduced the JY20-03-S1-B RF Schottky diode—a product specifically optimized for RF detection and mixer circuits, achieving industry-leading performance in junction capacitance and forward voltage characteristics.

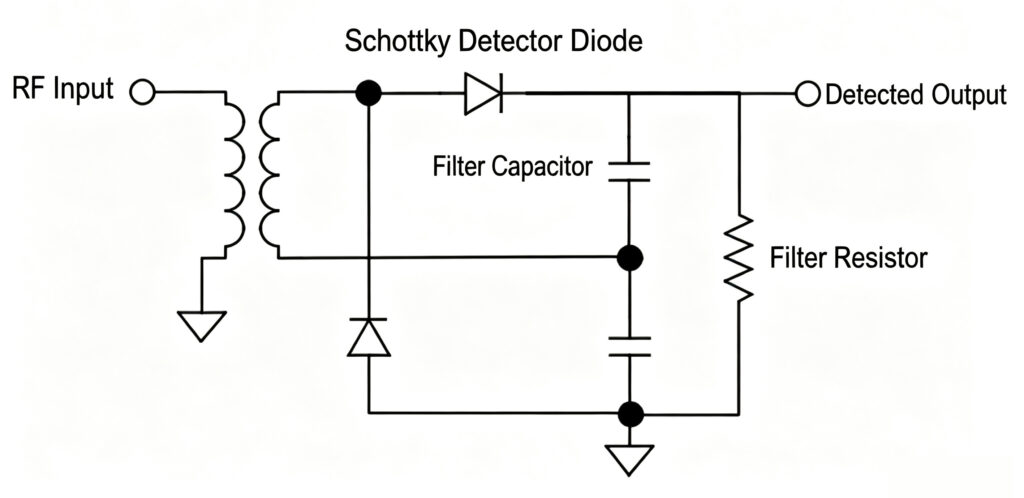

— Detection Circuits —

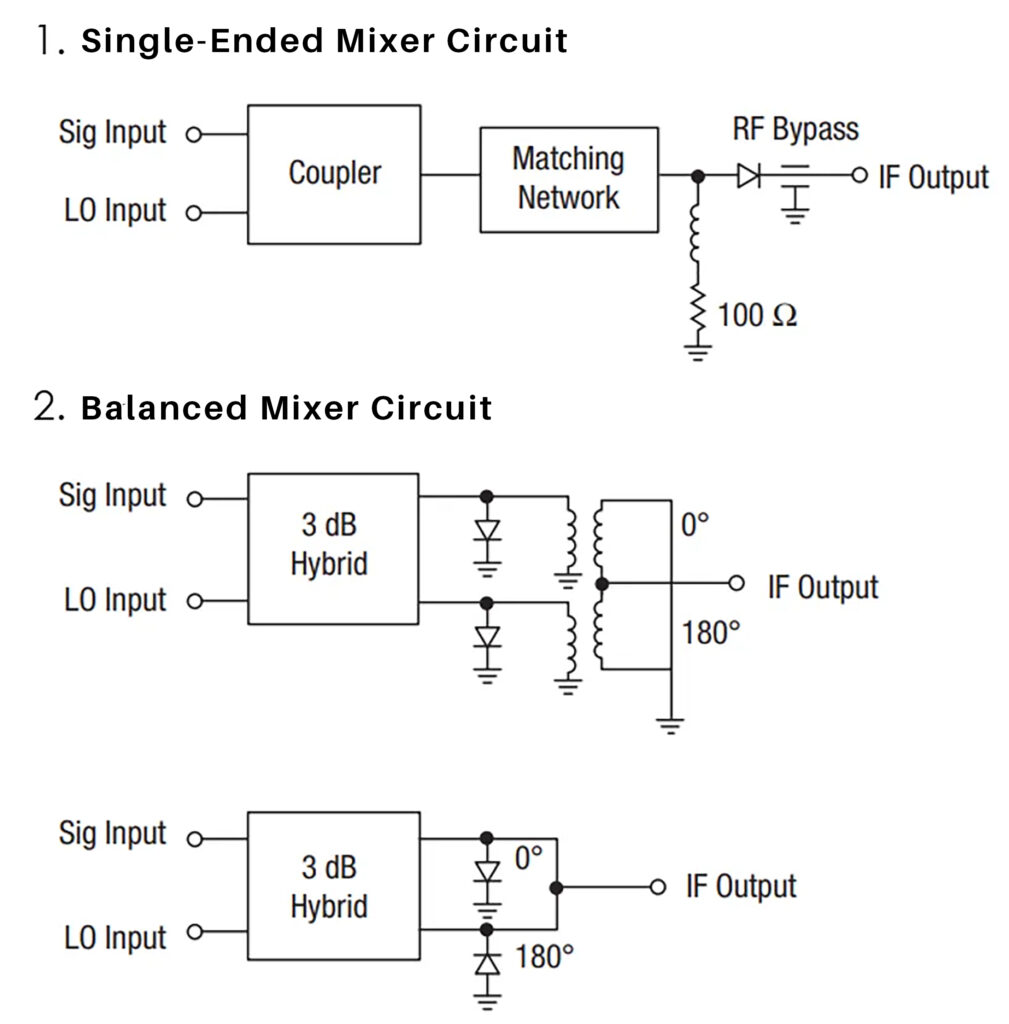

— Mixer Circuits —
Three Core Advantages Addressing Critical RF Design Constraints
1. Industry-Leading Ultra-Wideband, Low-Capacitance Performance
Typical junction capacitance of 0.18 pF at 0V, 1 MHz; capacitance drops to 0.13 pF at 10 GHz. This ultra-low capacitance profile preserves RF signal integrity across the entire operating bandwidth, minimizing insertion loss and reflection artifacts.
2. Low Forward Voltage Drop: The Low-Power Designer’s Choice
Engineered with a low barrier-height junction, the device achieves a forward voltage of merely 0.34 V at 1 mA (typical). This characteristic is critical for weak-signal detection applications and for reducing local oscillator power consumption in mixer topologies.
3. Miniaturized Footprint for Space-Constrained Designs
Packaged in the DFN1006-2L surface-mount outline with body dimensions of 1.0 mm × 0.6 mm × 0.5 mm, the device satisfies the aggressive form-factor requirements of modern RF circuit layouts.

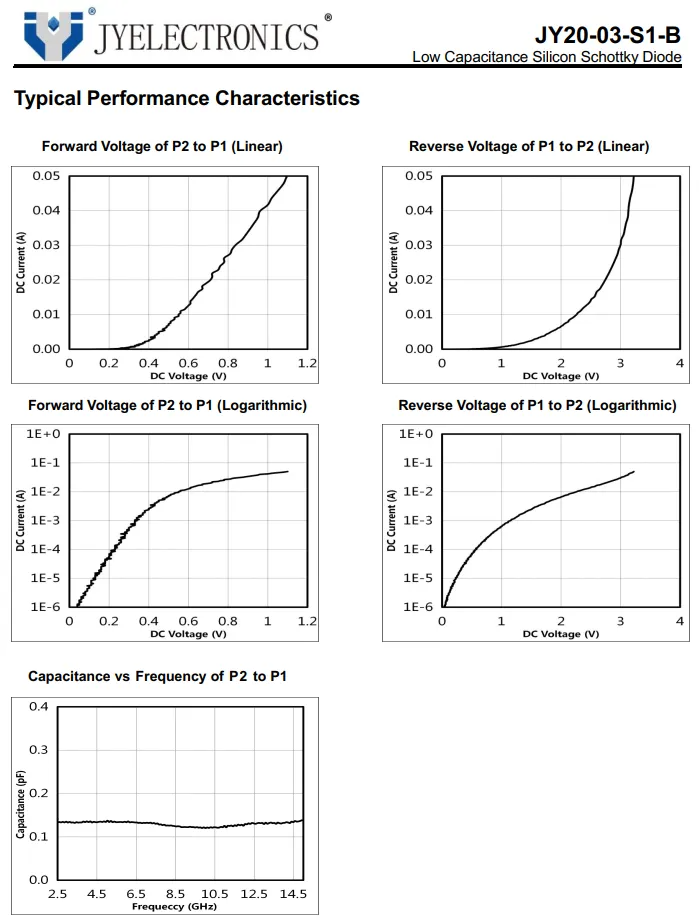

01. Device Characterization Curves

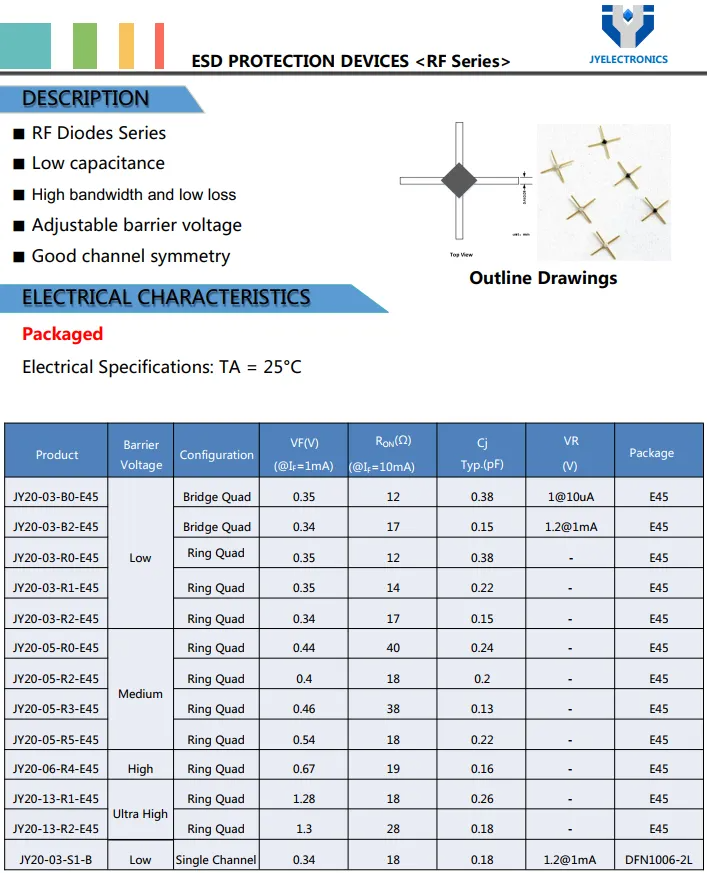

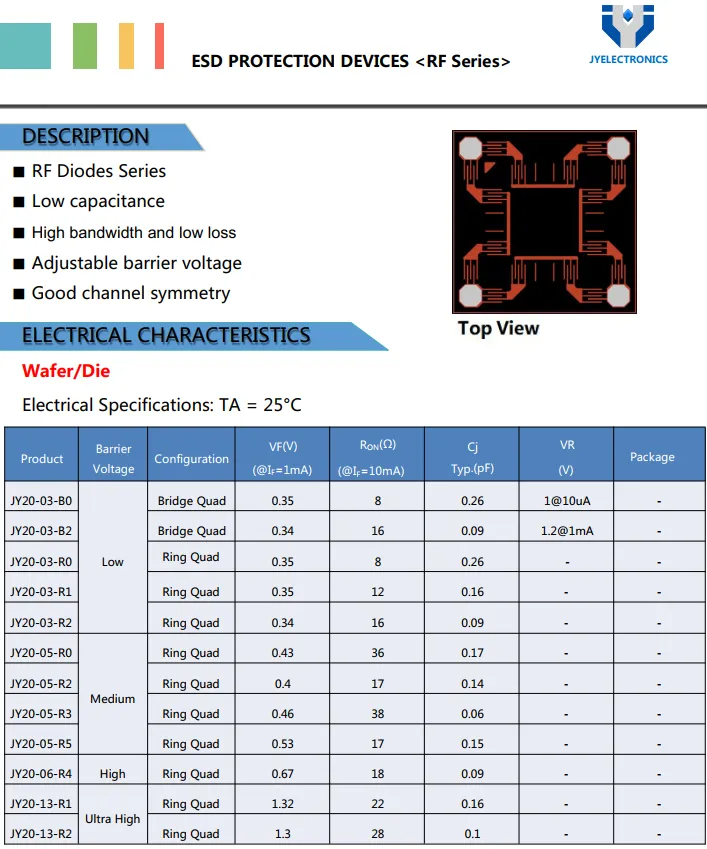

02. RF Schottky Diode Product Portfolio
JY Electronics’ proprietary RF diode technology, distinguished by unique structural advantages and application-specific optimization, has been adopted as a preferred solution by multiple industry-leading OEMs, providing robust foundational support for RF electronic systems.
Through continuous technology advancement, JY Electronics RF diodes now support customized packaging configurations. Beyond standard catalog offerings, we provide:
- Bare die for customer-facilitated assembly
- Ceramic-metal packages for enhanced performance
- Beam-lead configurations for miniaturized, high-reliability applications
- SMT plastic packages for high-volume, cost-optimized production

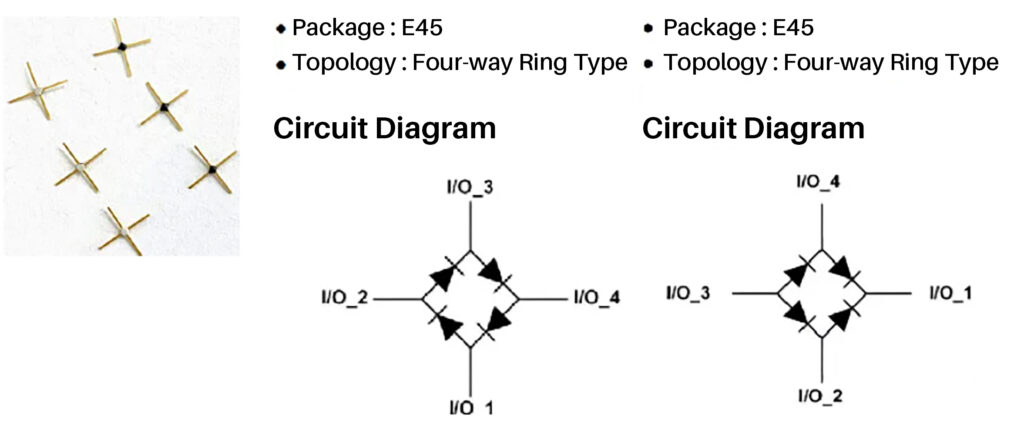

Packaging Options
1.E45 Ceramic Package : Hermetic, high-reliability
2.Bare Die : Customer assembly; minimal parasitics
3.Ceramic-Metal Package : Superior RF performance; premium cost
4.Beam-Lead : Enhanced performance; reduced footprint
5.SMT Plastic : Additional parasitic capacitance; high-volume, low-cost
————
Multi-Sector Applications
Application 1: Mixer Circuit
————

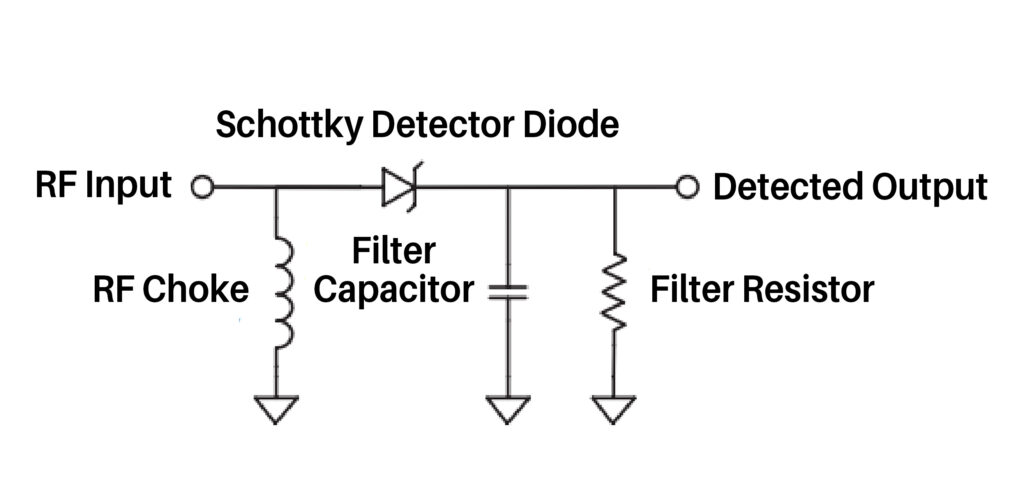

Application 2: Detector Circuit
————
Application 3: Voltage Multiplier Detector Circuit
————

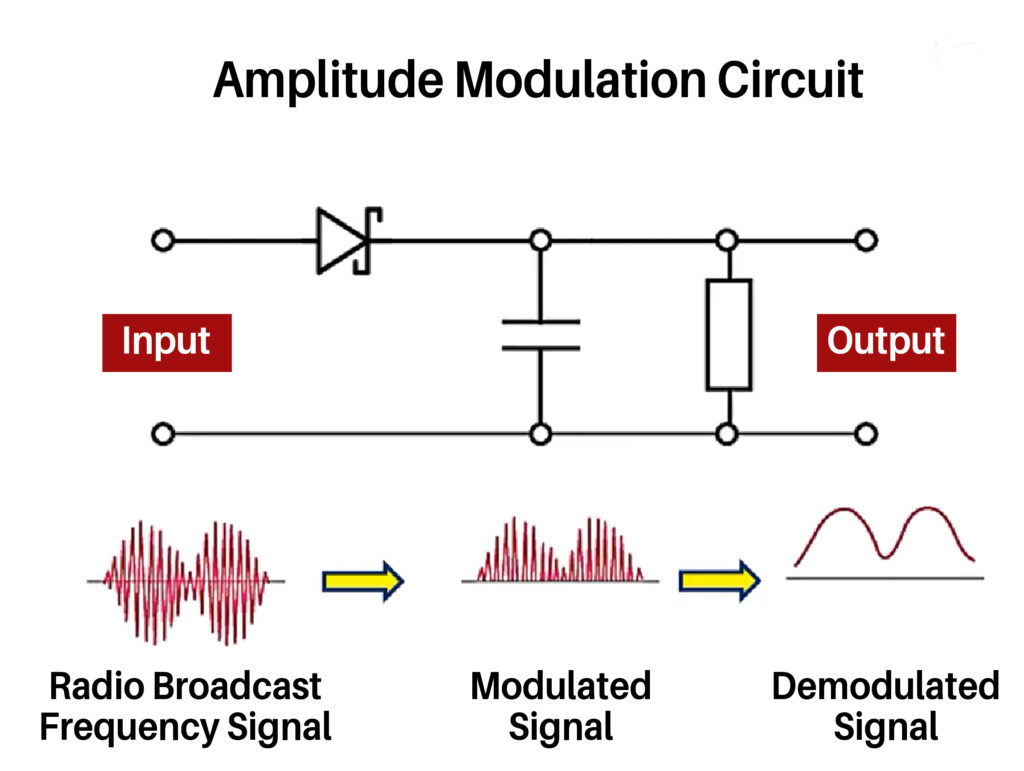

Application 4: Amplitude Modulation (AM) Circuit
————

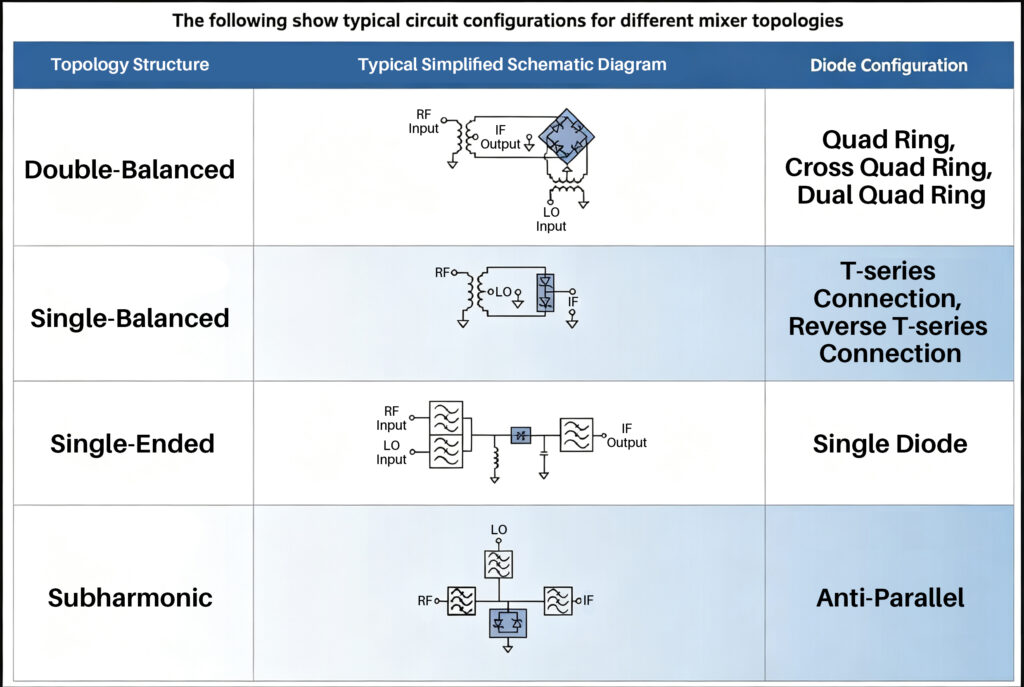

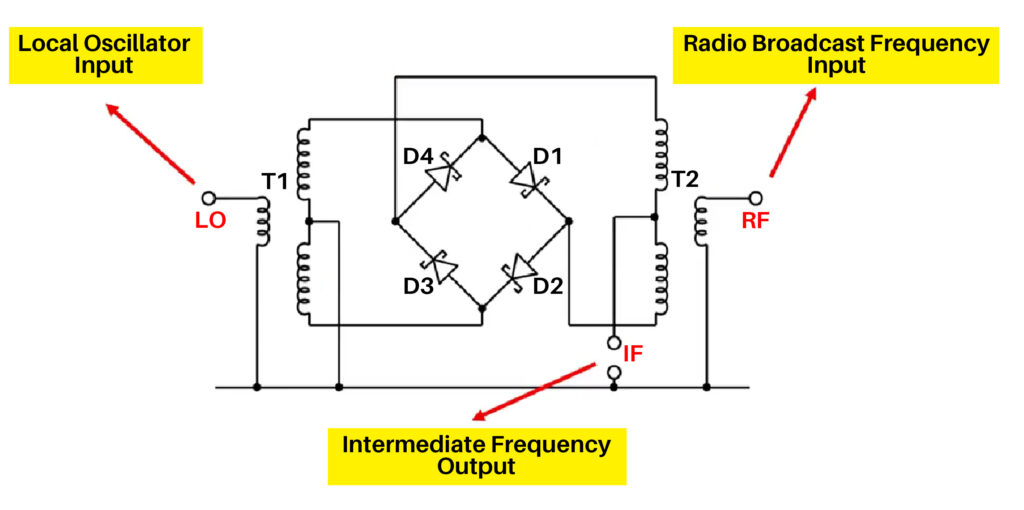

Application 5: RF Mixer Circuit
————

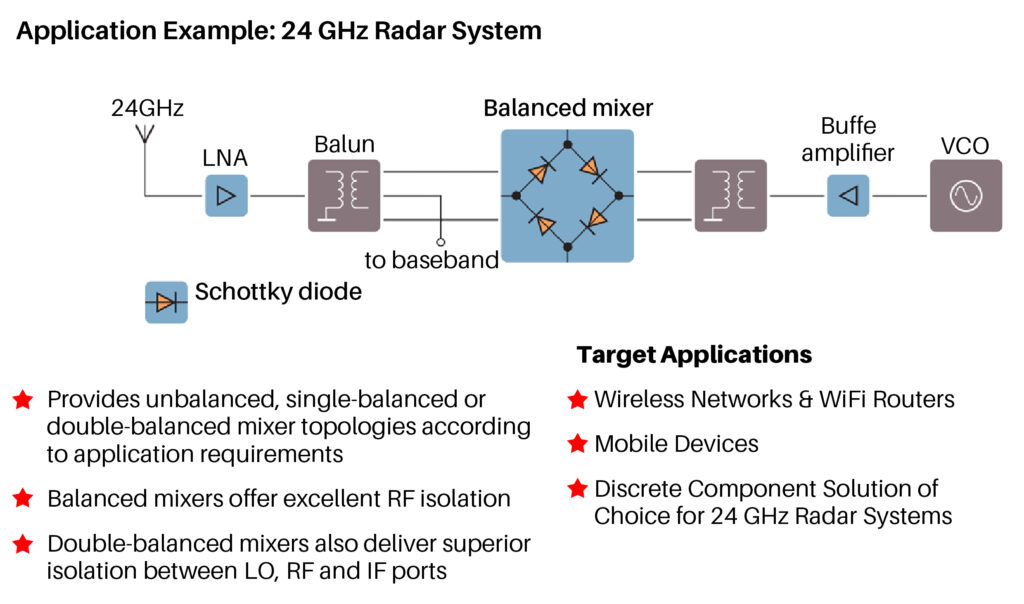

Application 6: Radar System
————
JY Electronics RF diodes deliver stable, qualification-proven performance across diverse market segments:
Consumer Electronics and IoT: Optical detectors in handheld devices, Wi-Fi/Bluetooth modules, RFID access control systems—enabling rapid signal modulation and demodulation.
Industrial and Communications Infrastructure: Low-noise amplifiers, antenna switches, CATV and satellite communications equipment—ensuring stable signal transmission across wide frequency ranges.
Automotive and Medical Electronics: AM/FM receivers, vehicle-to-everything (V2X) wireless modules, and precision medical signal detection—compliant with AEC-Q100 and medical-grade reliability standards.
Specialized and Test Equipment: Military radar systems, phased-array antenna beam steering, and high-fidelity test instrumentation—engineered for operation in demanding environmental conditions.
