Modern electronic systems are advancing rapidly toward higher integration densities and multi-functional architectures. To ensure sustained functional reliability and extended operational lifespan, three critical electromagnetic compatibility (EMC) challenges must be addressed concurrently: Electromagnetic Interference (EMI), Electrostatic Discharge (ESD), and Surge transients (8/20 μs waveform).

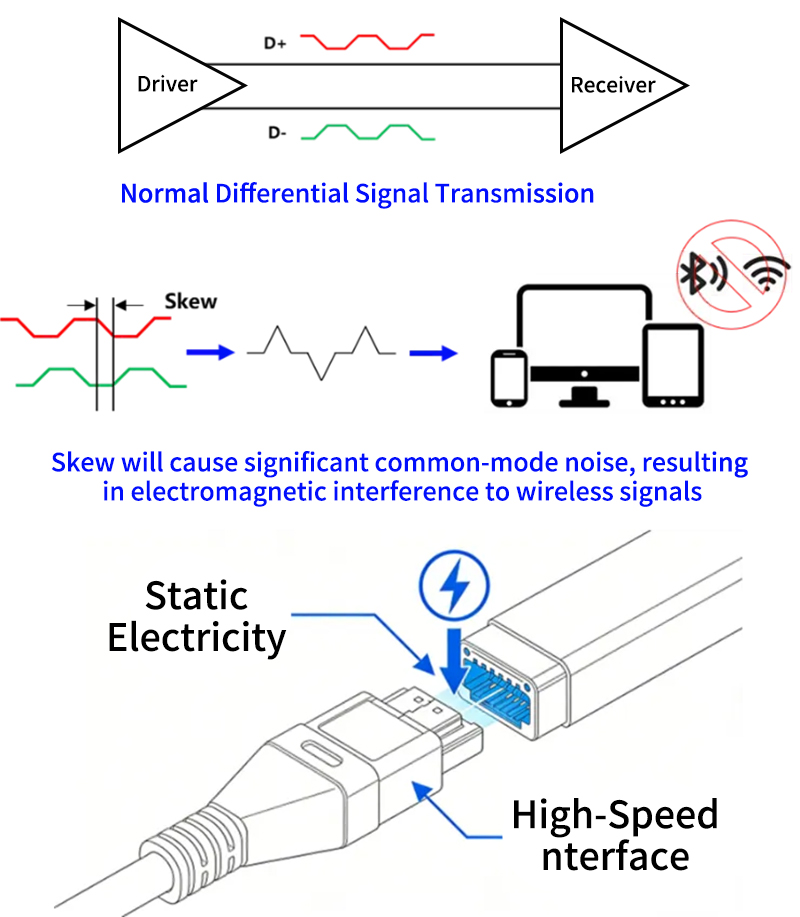

High-speed wired differential interfaces, including USB and HDMI, are inherently susceptible to significant common-mode noise generation during active operation, primarily attributable to routing-induced delay skew and impedance mismatches. This common-mode energy radiates as electromagnetic emissions, inducing severe interference in adjacent wireless transmission subsystems—such as Wi-Fi, Bluetooth, and 5G NR—resulting in measurable antenna desensitization (antenna desense). Consequently, the implementation of robust common-mode noise suppression for USB and HDMI interfaces is imperative.

Electrostatic discharge represents a pervasive threat at external I/O interfaces, with the potential to induce transient operational failures or catastrophic permanent damage to semiconductor devices. High-speed interfaces utilizing advanced nanoscale CMOS processes exhibit heightened vulnerability to ESD events, necessitating dedicated on-chip and system-level protection methodologies. Furthermore, dynamic application scenarios involving hot-plugging and live insertion generate surge transients on signal traces, mandating the integration of surge protection mechanisms.

Conventional discrete solutions addressing the aforementioned EMI, ESD, and surge requirements typically necessitate the deployment of at least one common-mode choke in conjunction with a separate ESD protection device. Within highly integrated modern electronic platforms, this discrete approach imposes substantial penalties in terms of PCB real estate utilization and bill-of-materials (BOM) complexity.

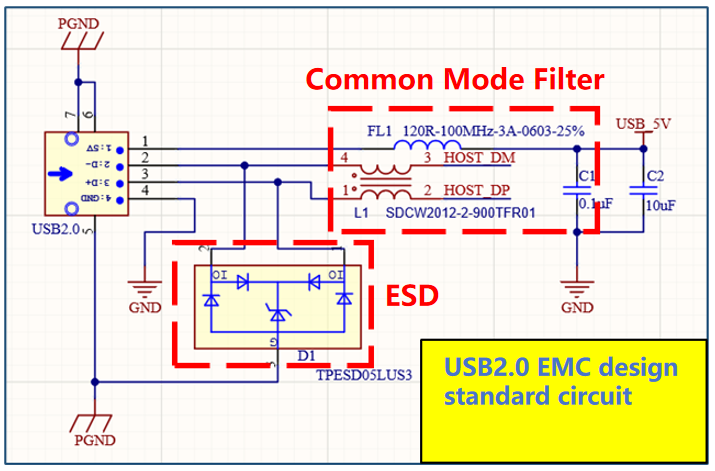

Traditional discrete implementation for USB 2.0 common-mode noise suppression (utilizing a discrete common-mode choke and ESD suppressor)

Through proprietary innovation and advanced R&D in transient voltage suppression and signal conditioning, JY Electronics has introduced the TFC0521M, a monolithically integrated ESD common-mode filter consolidating EMI suppression, ESD protection, and surge immunity into a single active-passive hybrid device. Relative to the preceding TFC0501M, the TFC0521M achieves a significantly enhanced differential bandwidth of 12.5 GHz, rendering it optimally suited for next-generation ultra-high-speed interfaces including USB 3.2 and HDMI 2.1. Protected by independent intellectual property, JY Electronics delivers comprehensive and high-efficiency protection and filtering solutions for a broad spectrum of electronic systems, with volume production and shipment already in progress.

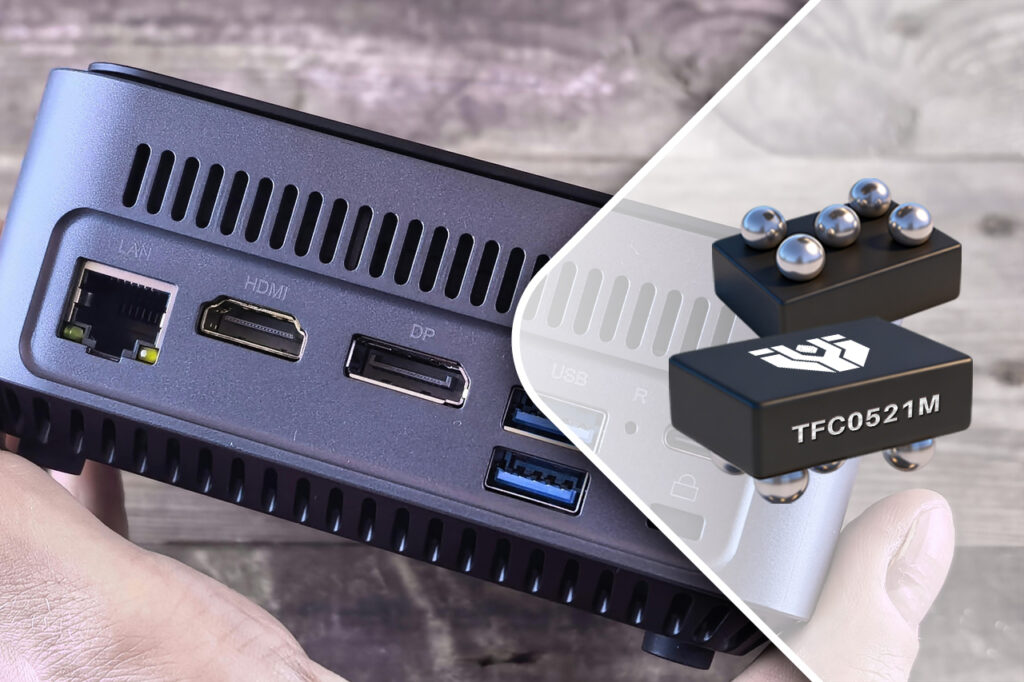

JY Electronics TFC0521M

Key Technical Specifications and Advantages

Monolithic Integration in Advanced Packaging

Leveraging state-of-the-art Wafer-Level Chip-Scale Packaging (WLCSP) technology, the device integrates a bidirectional Transient Voltage Suppression (TVS) diode and a common-mode filter choke within a single die-level package. The ultra-compact form factor (CSP-5-1208: 1.2 mm × 0.8 mm × 0.6 mm) significantly reduces component count and PCB area occupancy, facilitating system miniaturization and enhancing overall product reliability through reduced solder joint count and parasitic interconnects.

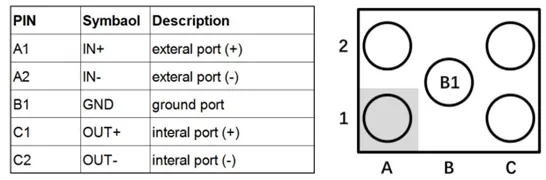

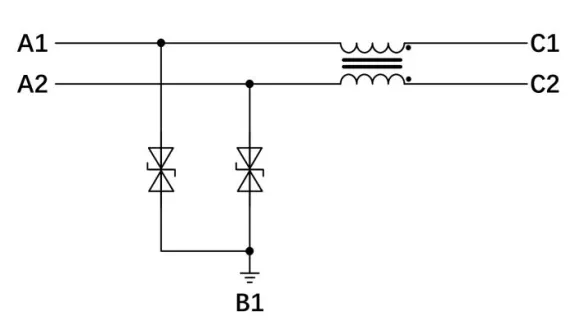

JY Electronics TFC0521M: Circuit schematic and pinout diagram

Superior Transient Protection Performance

The integrated TVS diode exhibits sub-nanosecond response times to ESD events, clamping transient overvoltages to safe operational levels (clamping voltage: 5.5 V at 6.5 A under 8/20 μs surge waveform testing). The device demonstrates exceptional ESD robustness, withstanding 15 kV contact discharge and 15 kV air-gap discharge per IEC 61000-4-2 Level 4, effectively preventing latent and catastrophic damage to downstream ICs.

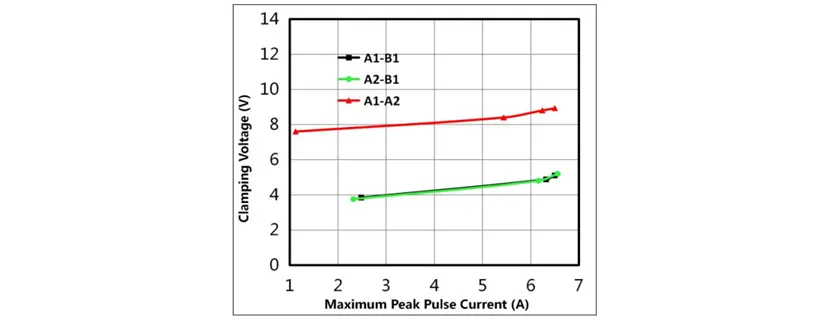

8/20 μs surge waveform characterization results

High-Efficiency Common-Mode Attenuation

The integrated common-mode filter provides effective suppression of common-mode interference across critical wireless frequency bands (SCC21 = −12 dB at 2.4 GHz; SCC21 = −25 dB at 5.0 GHz; resonant frequency fr = 4.3 GHz), substantially mitigating radiated EMI and antenna desense.

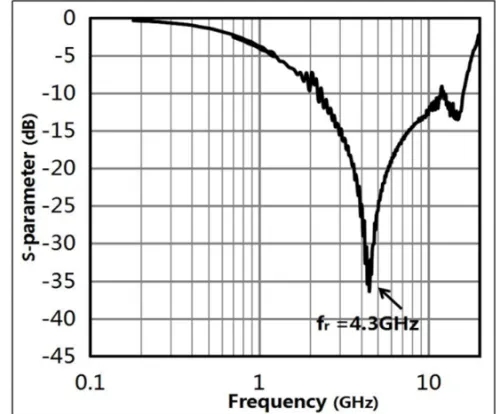

JY Electronics TFC0521M: SCC21 insertion loss characterization

Ultra-High Differential Bandwidth and Signal Integrity

The device maintains exceptional differential-mode transmission performance across extended frequency ranges (SDD21 −3 dB bandwidth = 12.5 GHz), the ultra-low parasitic capacitance of 0.25 pF (VR = 0 V, f = 1 MHz) minimizes insertion loss and phase distortion, preserving high-speed signal integrity and compliance with eye diagram mask requirements.

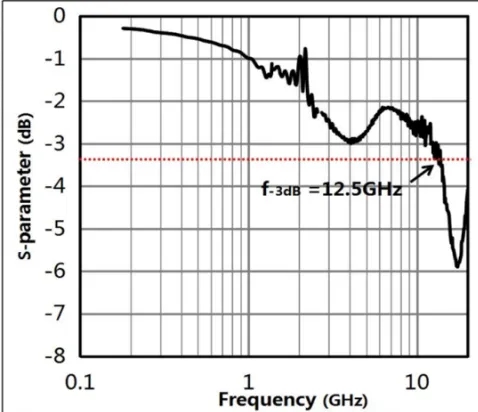

JY Electronics TFC0521M: SDD21 differential insertion loss characterization

Precision Differential Impedance Matching

Time-Domain Reflectometry (TDR) analysis confirms excellent differential impedance control (ZDIFF ≈ 90 Ω), ensuring full compliance with the strict differential impedance specifications mandated by USB and HDMI routing guidelines.

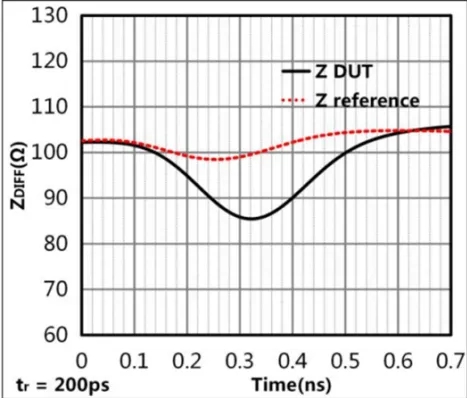

JY Electronics TFC0521M: TDR impedance profile

Application Reference Designs

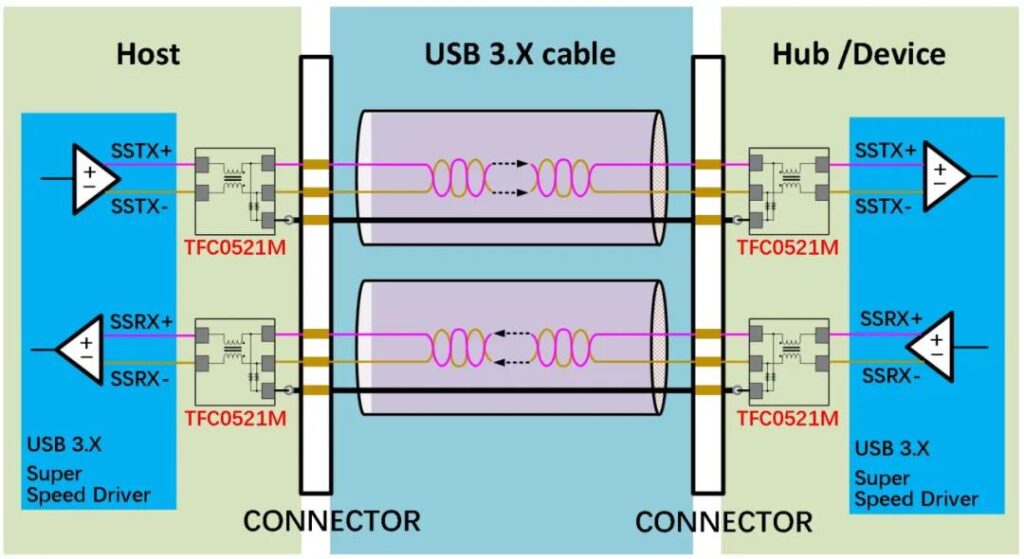

Circuit implementation of TFC0521M in USB 3.x (Gen1/Gen2) differential signaling paths

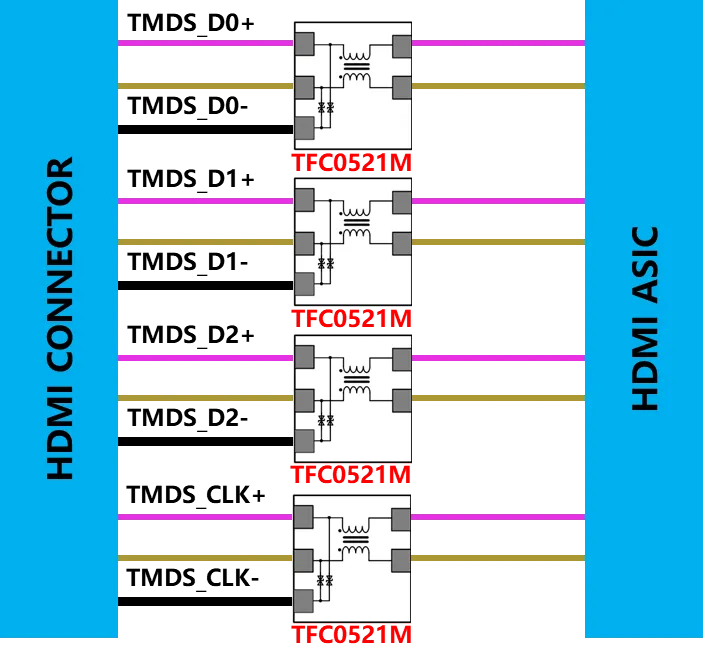

Circuit implementation of TFC0521M in HDMI high-speed link architecture

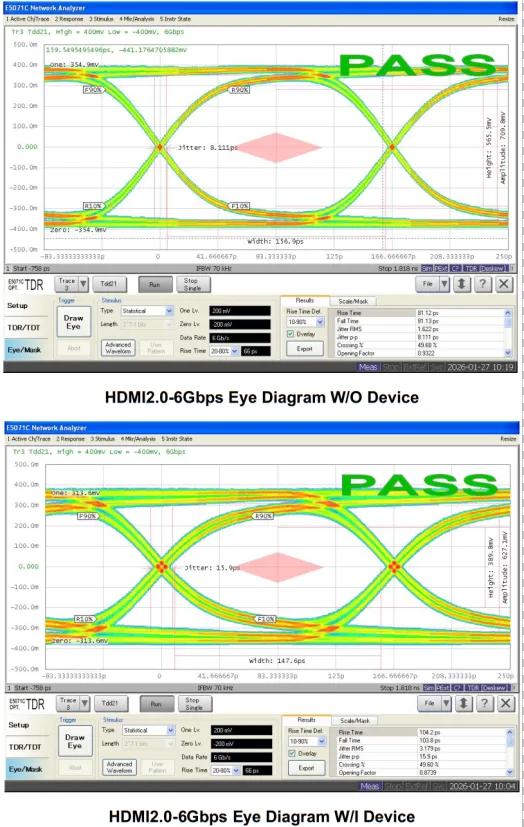

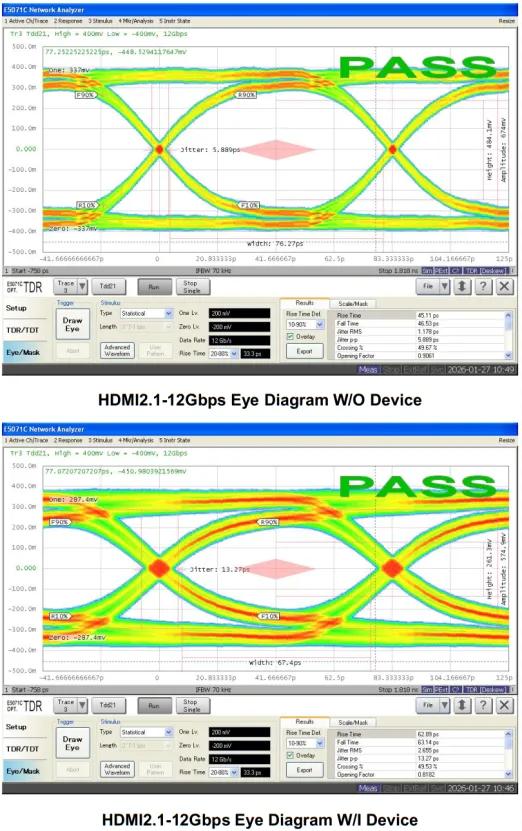

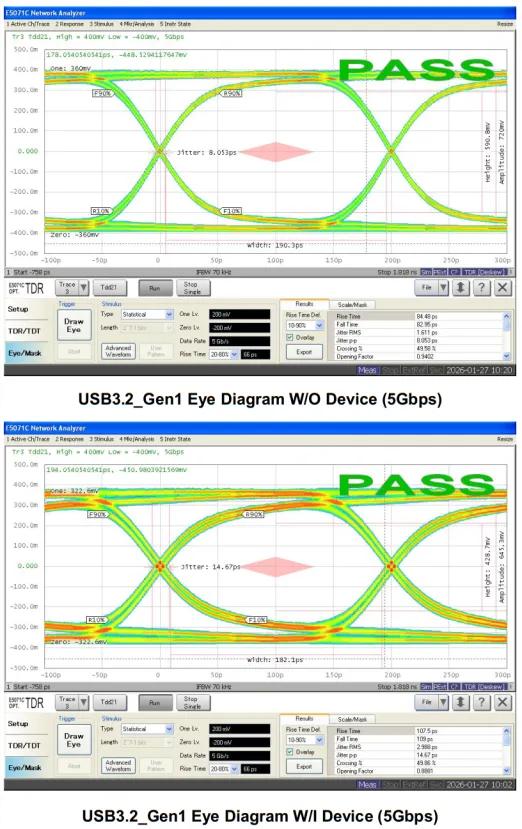

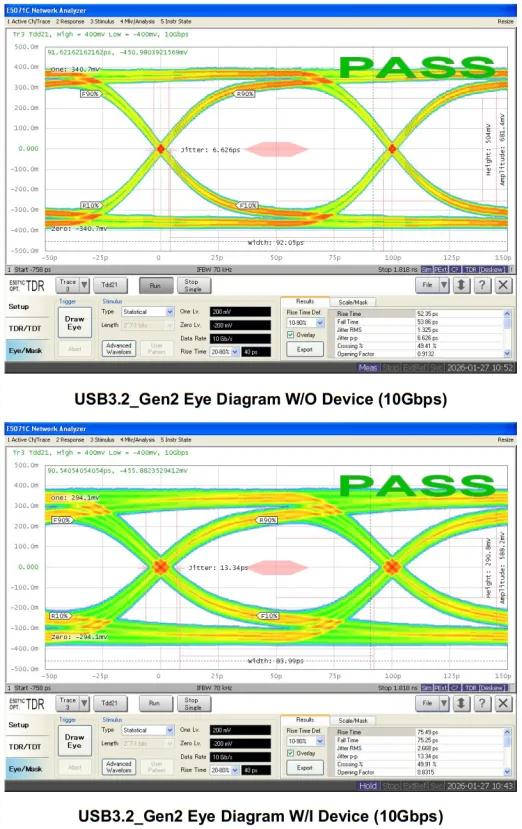

TFC0521M eye diagram compliance test results
