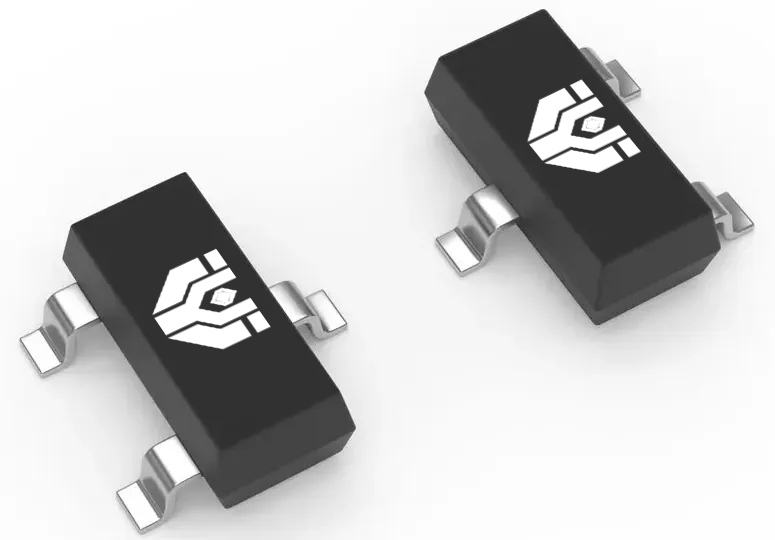

JY Electronics offers a range of low-power transistors, all packaged in the compact SOT-23 format. These transistors come in various voltage ranges and amplification factors, making them suitable for a wide range of applications including industrial control, smart home technology, wireless remote control, and small household appliances. They are commonly used for wireless signal amplification, signal switching control, and in low-power LED and buzzer driver circuits. Popular NPN transistor models include the MMBT3904 and S8050, while PNP models include the MMBT3906 and S8550.
Bipolar Junction Transistor (BJT) Principle
A bipolar junction transistor (BJT) is a type of transistor that consists of two back-to-back PN junctions designed to achieve voltage, current, or signal gain.
There are two basic structures of bipolar transistors: PNP and NPN. In these three layers of semiconductor material, the middle layer is called the base (b), and the outer layers are called the emitter (e) and the collector (c). When a small current is injected into the base, a larger current flows between the emitter and the collector, which is the amplification effect of the transistor.
Three Operating States of a Transistor
Cut-Off State: This occurs when the base voltage of the transistor is too low to allow current to flow between the collector and the emitter.
Saturation State: This occurs when the base voltage is so high that the current between the collector and the emitter reaches its maximum, regardless of changes in the base current.
Active (Amplification) State: This is the state where the base voltage is between the cut-off and saturation levels, allowing the current between the collector and the emitter to vary with changes in the base current.

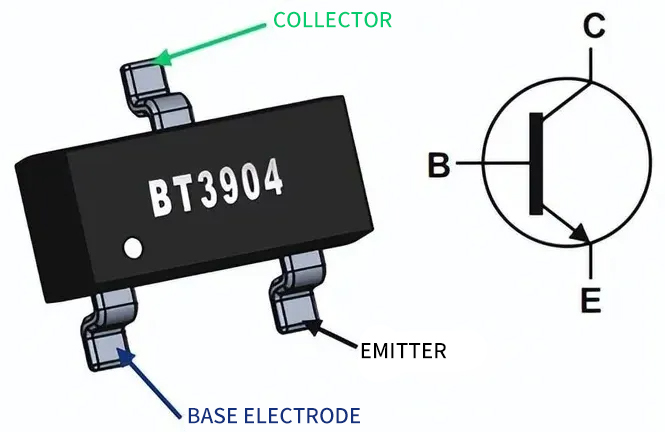

Features of JY Electronics MMBT3904
1、High Gain: With a maximum gain of 300, the MMBT3904 offers excellent amplification capabilities.
2、Maximum Collector Current: The collector pin can handle a maximum current of 200mA, making it suitable for loads that consume up to 200mA.

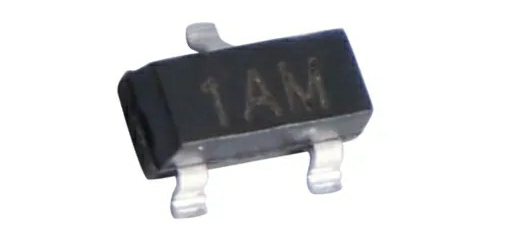

3、Compact SOT-23 Package: The surface-mount SOT-23 package is small, lightweight, and heat-resistant, ideal for high-density integration and automated production.
4、High Frequency Response: Suitable for high-frequency switching applications.
5、Appropriate Current Gain: Ideal for amplifying weak signals.
6、Low Noise Characteristics: Suitable for applications requiring high signal quality, such as amplifiers and radios.
7、Low Static and Dynamic Power Consumption: Helps save energy and extend battery life.
Applications of JY Electronics MMBT3904
1、Low-Power Electronic Circuits: Suitable for a variety of low-power electronic circuit applications.
2、High-Density Integration: Ideal for applications requiring high-density integration and automated production.
3、High-Frequency Switching Applications: Suitable for applications involving high-frequency switching.
4、High Signal Quality Applications: Ideal for applications requiring high signal quality, such as amplifiers and radios.
5、Energy-Efficient Applications: Suitable for applications where energy conservation and extended battery life are important.
