In today’s increasingly digital landscape, many users have encountered a frustrating phenomenon: while connected to Wi-Fi and streaming content seamlessly, internet speed abruptly deteriorates the moment a charger is plugged in or an external device is connected—resulting in severe buffering and degraded performance. Alternatively, a device port may suddenly become unresponsive, with previously functional peripherals ceasing to operate without apparent cause.

These issues are typically attributable to three fundamental electromagnetic threats: Electromagnetic Interference (EMI), Electrostatic Discharge (ESD), and transient surge events. High-speed interfaces such as USB and HDMI generate common-mode noise during data transmission. This noise couples into wireless communication subsystems—including Wi-Fi and Bluetooth—degrading antenna sensitivity and causing significant network latency. Concurrently, electrostatic discharge from routine handling and switching transients during hot-plugging pose severe reliability risks to nanometer-scale semiconductor devices, potentially resulting in catastrophic integrated circuit failure and system malfunction.

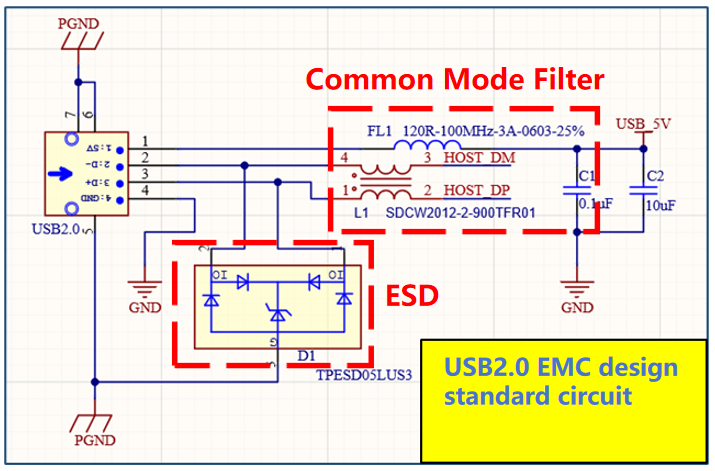

Historically, mitigating these threats required discrete implementation of at least two distinct components—a common-mode choke and a dedicated ESD protection device—on the printed circuit board. However, as electronic systems continue to advance toward higher integration densities and enhanced multi-functionality, this conventional approach presents critical limitations, including excessive PCB real estate consumption and increased bill-of-materials complexity.

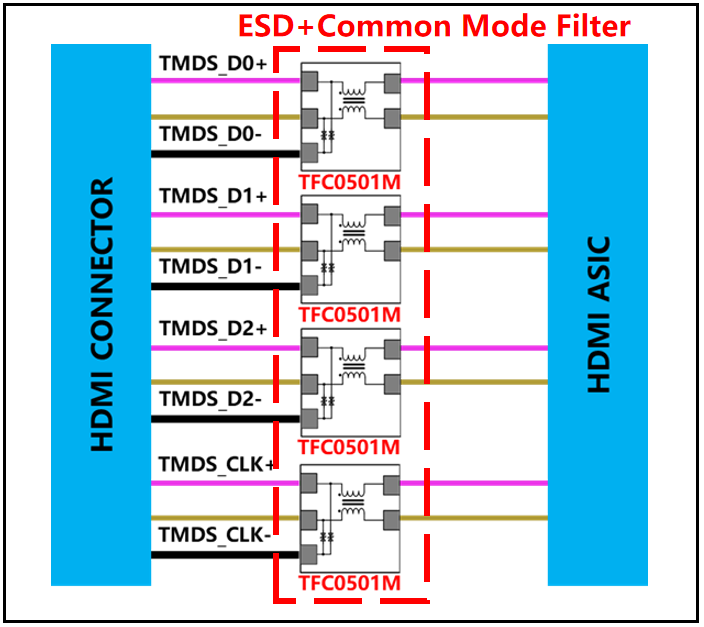

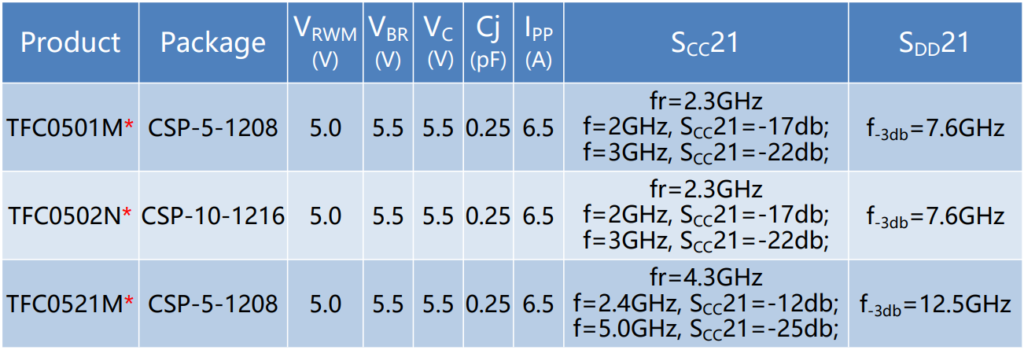

The TFC0521M from JY Electronics addresses these challenges through monolithic integration of ESD protection and common-mode filtering functionality within a single device. Utilizing a Wafer-Level Chip-Scale Package (WLCSP) with dimensions of merely 1.2 mm × 0.8 mm × 0.6 mm, it achieves substantial PCB area reduction. The device incorporates a Transient Voltage Suppression (TVS) diode and an integrated common-mode filter, enabling rapid dissipation of ESD events up to 15 kV while effectively suppressing common-mode noise—all without compromising high-speed signal integrity. With an exceptional bandwidth of 12.5 GHz, the TFC0521M is optimally suited for ultra-high-speed interfaces including USB 3.2 and HDMI 2.1. Furthermore, its pinout is designed for drop-in compatibility with equivalent products from international market leaders, facilitating direct substitution without PCB redesign.

For engineers currently addressing signal integrity challenges in high-performance electronic systems, the JY Electronics TFC0521M presents a compelling solution—delivering robust signal protection while enabling enhanced system reliability and operational stability.
