The Alibaba Qwen AI Glasses S1 is a flagship AI glasses model launched by Alibaba. The S1 boasts significant upgrades in interaction, display, battery life, and hardware configuration. It is equipped with the latest Qwen AI model, supporting voice and visual multimodal interaction. Users can directly ask questions about any content they see, and the AI will respond in real time and display the answers right before their eyes. Additionally, functions such as AI simultaneous interpretation, meeting minute generation, and navigation prompts can be activated through voice commands, eliminating the need for reliance on smartphones and providing users with great convenience.

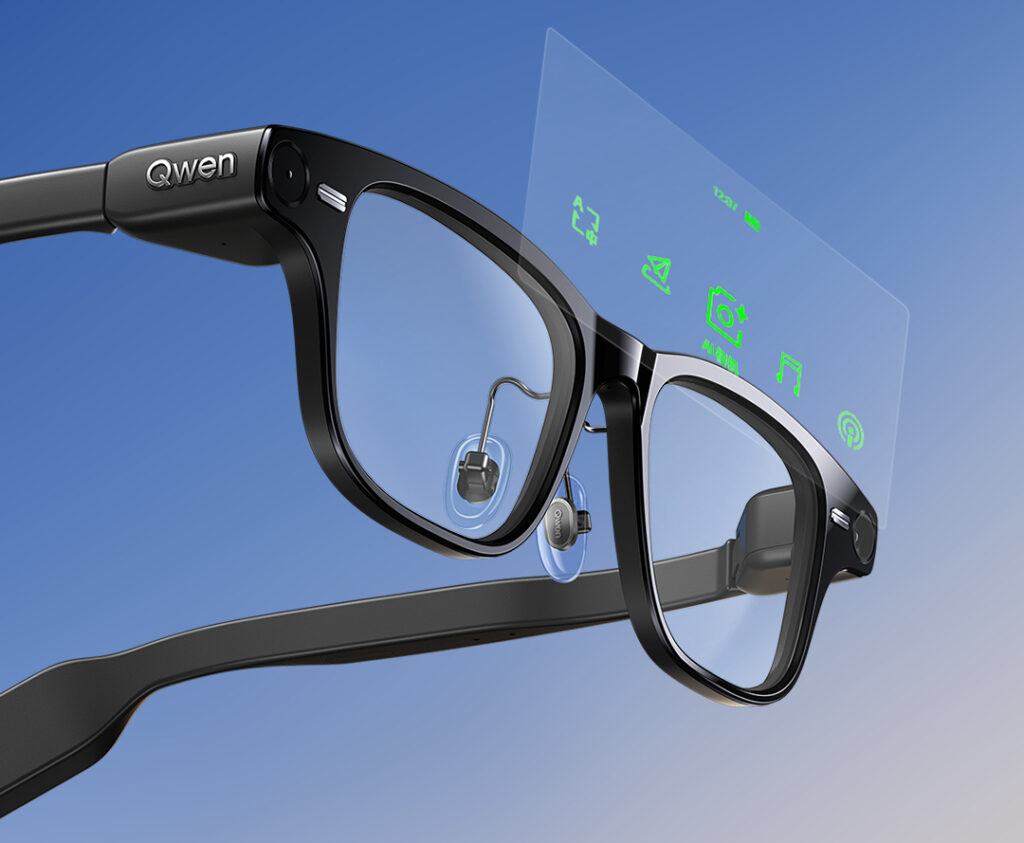

In terms of display, the S1 adopts a dual-projector binocular display solution, ensuring no light leakage when viewed head-on and delivering a peak brightness of up to 4,000 nits for the eyes, remaining clearly visible even in bright outdoor environments. Moreover, the display position can be adjusted for distance and height to meet the usage needs of different users.

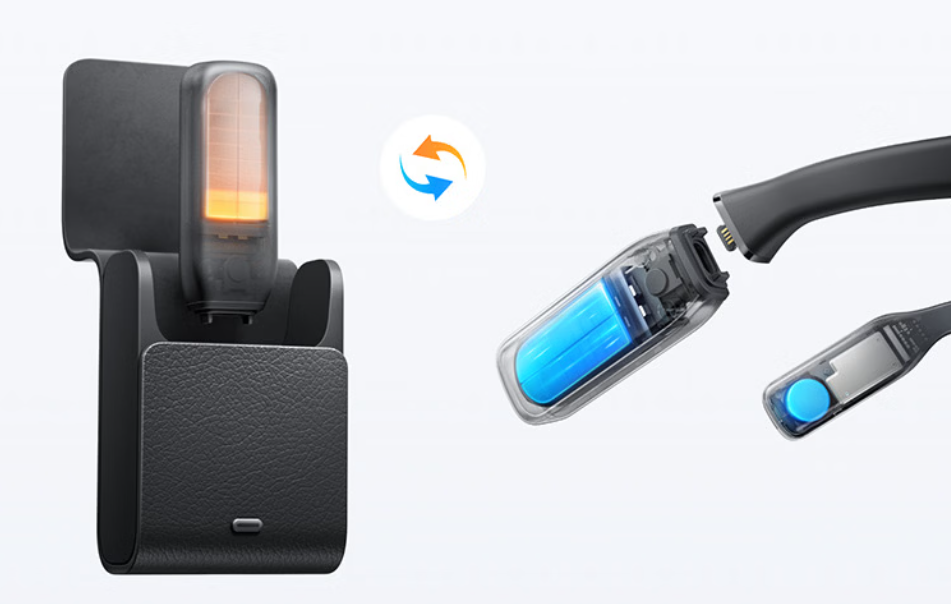

Regarding battery life, the S1 features a dual-battery design and supports hot-swappable battery replacement technology, allowing users to quickly change batteries without shutting down the device. When paired with a battery swap station, it can achieve all-day battery life, alleviating users’ concerns about running out of power.

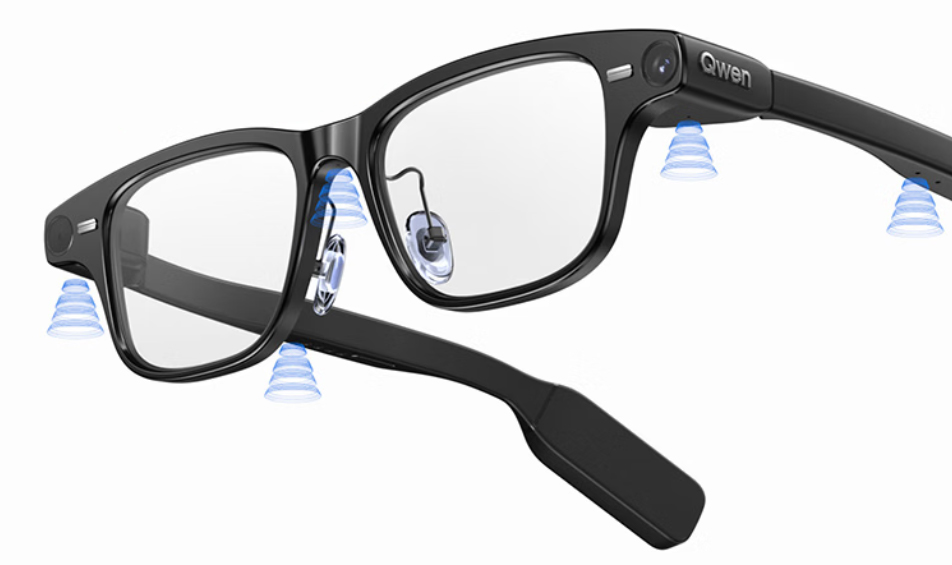

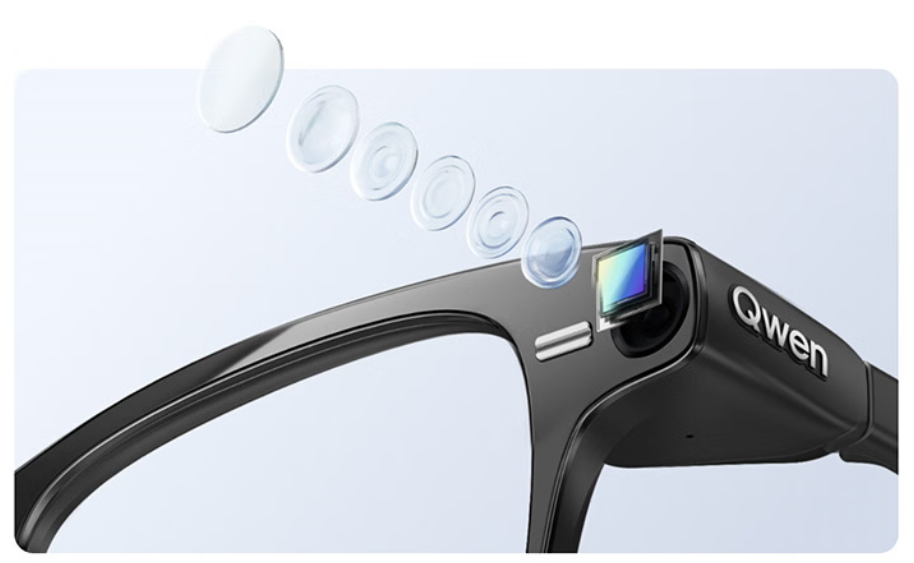

In terms of hardware configuration, the S1 is equipped with a 12-megapixel camera that supports 3K video recording and super night photography, delivering outstanding shooting performance. The audio system includes dual voice coil speakers, a 5-microphone array, and bone conduction configuration, ensuring clear and accurate voice input and stable output even in complex environments.

Aesthetically, the S1 is initially available in the “Sage Black • Wellington Frame” style, featuring a lightweight design that remains comfortable even after prolonged wear and is tailored to fit Asian facial structures. More styles will be introduced in the future for users to choose from.

Portable devices like smart glasses and smartwatches require robust ESD (Electrostatic Discharge) protection at critical circuit nodes:

• Interface Sections (USB, Headphone/SIM Jacks): As frequent points of physical contact, these I/O ports are highly vulnerable to ESD transients. Placing TVS (Transient Voltage Suppressor) diodes nearby provides a low-impedance path to shunt ESD currents away from sensitive internal circuits, clamping the voltage to a safe level.
• Signal Transmission Lines:
  • High-Speed Differential Lines (e.g., HDMI, USB 3.0): These lines demand high signal integrity and controlled impedance. Low-capacitance TVS diodes are used at entry points to block ESD without adding significant parasitic capacitance, which could cause signal attenuation or jitter, thus ensuring stable data transmission.
  • Analog Lines (e.g., Audio): Analog signals are sensitive to voltage fluctuations and noise. Bidirectional ESD protection diodes are typically used to prevent voltage transients in both positive and negative polarities from interfering with the signals, ensuring clear and stable audio quality.
• Power Supply Entry: The power input is a major pathway for ESD and surge events. Protection devices like MOVs (Metal Oxide Varistors) or TVS diodes are installed here to clamp overvoltages, safeguarding the PMIC (Power Management IC) and downstream load circuits. They are typically placed before LC or π-type power filters for optimal performance and to provide a stable and reliable power input for the entire system.
• User Interface (Buttons, Touchscreens): These are direct user interaction points and common ESD entry paths. ESD protection devices are placed near the button controller’s GPIO pins or at the touchscreen controller interface to prevent latch-up and physical damage, ensuring reliable operation.
