REDMI has launched the large-screen, long-endurance learning tablet REDMI Pad 2 Pro, specifically designed for students.

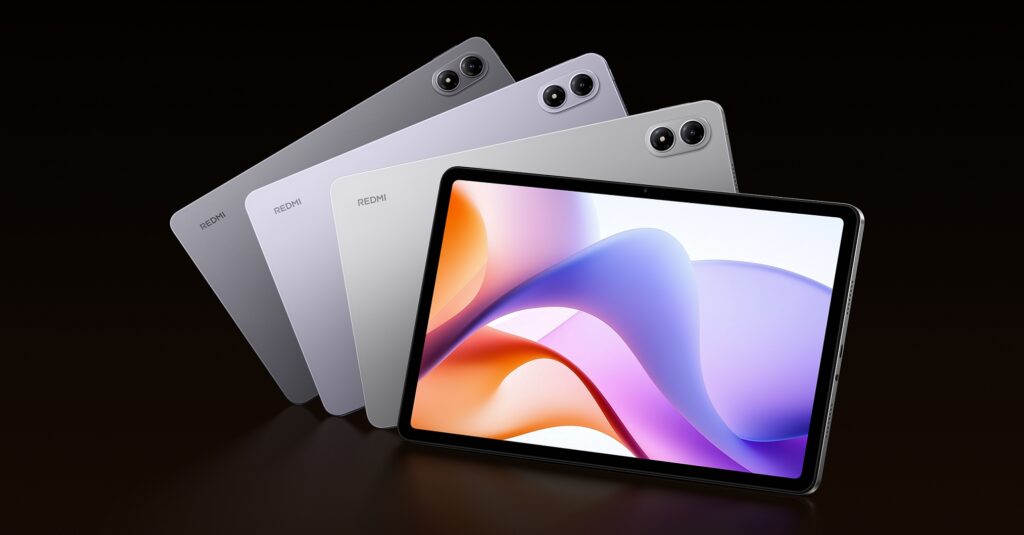

In terms of appearance, it features a metal unibody design with a matching racetrack-shaped Deco meticulously crafted through CNC technology, offering an outstanding texture. It is available in three colors: silver, purple, and dark gray, with a thickness of 7.5mm and a weight of 610g. The back is simple, with the REDMI brand logo in the top left corner and a camera module in the top right corner that continues the dual-ring design of the REDMI Turbo family.

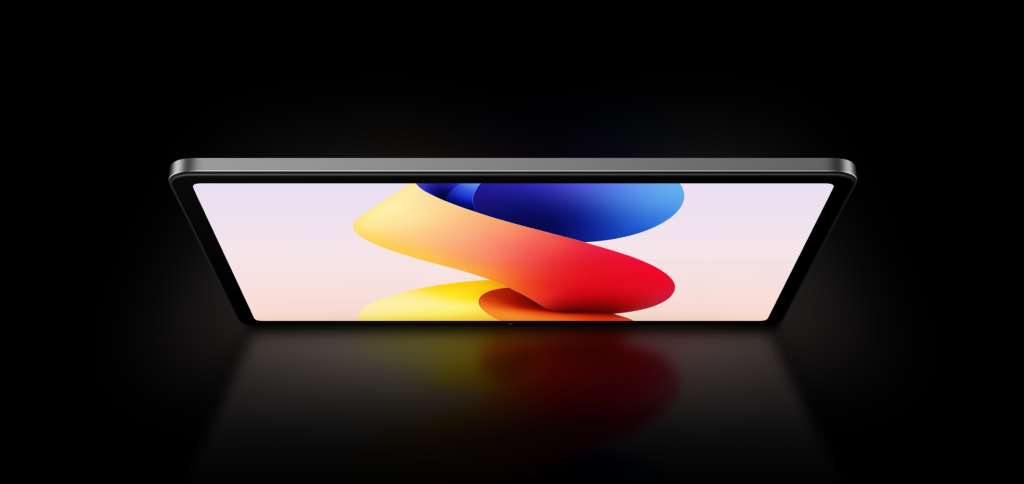

Regarding the screen, it utilizes a 12.1-inch 2.5K ultra-clear eye-care display with a 16:19 aspect ratio, a resolution of 2560×1600, 249ppi, and a maximum brightness of 600nits. It supports a 120Hz refresh rate, 360Hz touch sampling rate, and wet-hand touch control 2.0. It has passed multiple eye-care certifications and offers a soft-light screen version. The AG nano-texture technology can eliminate 97% of external ambient light interference.

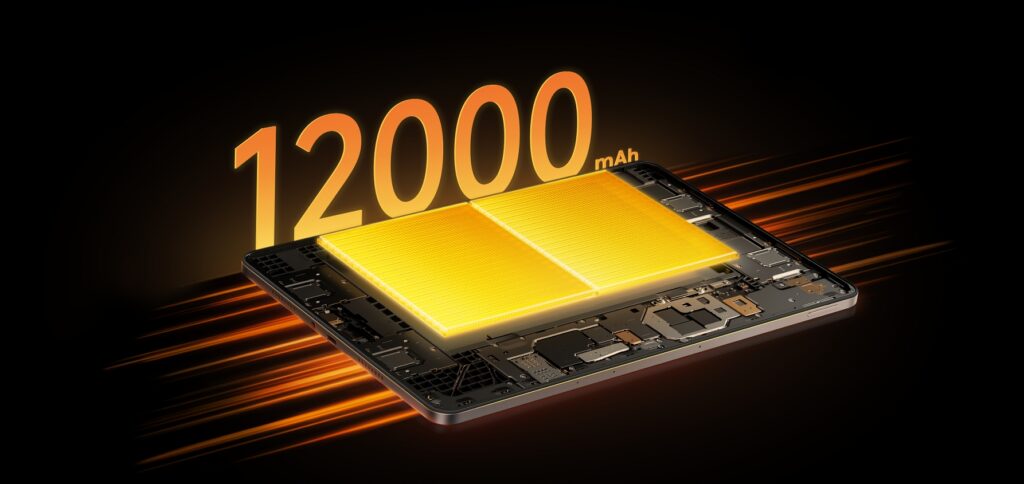

In terms of performance, it is equipped with the Snapdragon 7s Gen 4 mobile platform, LPDDR4X memory, and UFS 2.2 flash storage. It has a built-in 12000mAh large battery and a USB Type-C port that supports data transfer (USB 2.0), 33W wired fast charging, and 27W wired reverse charging, enabling emergency power supply for devices like smartphones.
For imaging, it has an 8MP front camera (OmniVision OV08D10, 1/4″) and an 8MP rear single camera (GalaxyCore GC08A3, 1/4″).
Among other features, it comes with 1620 symmetrical stereo quad speakers, dual microphones, supports Wi-Fi 6, Bluetooth 5.4, Hi-Res certification, IP52 dust and water resistance, retains a 3.5mm headphone jack, supports up to 2TB storage card expansion, and runs on Xiaomi’s HyperOS 3 system. Its excellent eye-care performance and the parental control mode help students focus on learning and improve learning efficiency.
As highly integrated portable devices, tablets require ESD protection components (ESD/TVS) to ensure reliability and user experience. Key interfaces requiring protection include:
1.Data & Charging: USB Type-C/USB 3.x/4 and Thunderbolt require ultra-low capacitance (<0.5pF) devices to maintain signal integrity; Micro-USB requires low clamping voltage for power and data lines.
2.Expansion: MicroSD and SIM slots need protection against human contact during hot-swapping.
3.User Interaction: 3.5mm jacks need ultra-low leakage current to preserve audio quality; physical buttons require TVS diodes to withstand ESD shocks.
4.Wireless/RF: Wi-Fi/GPS and NFC antennas require ultra-low capacitance protection to prevent signal interference.
5.Internal Signals: Camera (MIPI CSI), Display (MIPI DSI), and Touch (I²C) interfaces need ultra-low capacitance arrays to prevent signal distortion.
6.Power: Battery (BMS) and DC-IN ports require high surge current handling to protect against power surges.
7.Sensors & Aux: Sensors and HDMI outputs require protection to prevent component damage.
